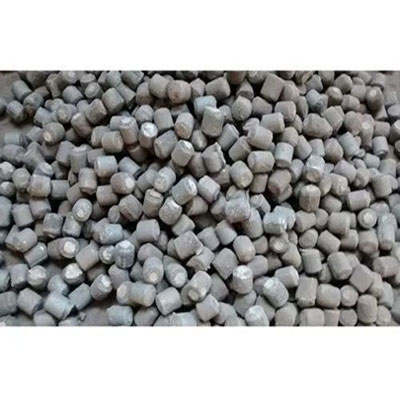

Grinding Clypeus
Hyper Steel Grinding Clypeus Manufacturers in India
We are renowned manufacturer of high quality grinding media Clypeus. Our high quality Clypeus is famous for high density.
| Material | v Cast Iron |
| Diameter | v 22 to 35 mm |
| Tolerance | v +/- 1 mm |
| Hardness | v 45-65 HRC |
| Breakage Rate | v Less than 1 % |
Backed by rich industry experience and market understanding, we are involved in offering a wide array of Cast Iron Grinding Clypeus to our valued patrons.
As per the variegated application requirements of clients, they can avail from us a quality range of Grinding Clypeus Manufacturers in India in various diameters and technical specifications. Forged steel grinding media made available by our organization has a chemical composition in accordance with IS 12658:1989 standards. These grinding media balls and cyplebs are widely utilized in grinding and milling applications.
Specifications:
- Chemical composition: The chemical composition of the grinding media is in accordance with IS 6079-1989
- Hardness: When tested in accordance with IS 1500/1983, the hardness is found to be more than 375 BHN
- Microstructure: Microstructure is free from continuous carbide network
- Heat treatment: The grinding media is heat treated to obtain the required hardness and microstructure
- Balls diameter (mm) – 125, 100, 90, 80, 75, 70, 65, 60, 50, 40, 30, 25, 20, 17, 15
- Clypeus (mm) – 35 x 35, 25×25, 22×22, 19×19
- Hardness: When tested in accordance with IS 1500/1983 the hardness at any point across the section of the ball is more than 375 BHN.
- Microstructure: Microstructure shall be free from continuous carbide network.
- Heat treatment: The grinding media is suitably heat treated to obtain the required hardness and Microstructure.
- Standard size of grinding media: Balls diameter (mm)-125, 100, 90, 80, 75, 70, 65, 60, 50, 40, 30, 25, 20, 17, 15
- Clypeus (mm)-35 x 35, 25×25, 22×22, 19×19
| Grade-1 (For size 60 mm & above) | Grade-2 (For size below 60 mm) | |
| Carbon | 1.25-1.50 | 1.60-1.90 |
| Silicon | 1.00 Max. | 1.00 Max. |
| Manganese | 1.20-1.50 | 1.20 -1.50 |
| Chromium | 1.50-2.00 | 1.50-2.00 |
| Sulphur | 0.06 Max. | 0.06 Max. |
| Phosphorus | 0.06 Max. | 0.06 Max. |
Tolerance on size: Variation on size shall not exceed the following limits:-
| Shape and size | Tolerance (mm) |
| (1) Balls for sizes 60 mm & above | +/- 2.50 |
| (2) Balls for sizes 30 to 50 mm & below | +/- 2.00 |
| (2) Balls for sizes 15 to 25 mm & below | +/- 1.50 |
| (3) Clypeus for all sizes | +/- 1.50 |
